TACLANE-C175N CHVP Encryptor

High Assurance Security and Interoperability with Non-CCI Handling – NOW AVAILABLE!

The new TACLANE-C175N CHVP Encryptor is bridging the need for High Assurance Type 1 certified security and interoperability with COTS Handling and End User Devices.

The TACLANE-C175N CHVP is Certified!

A new alternative to traditional Type 1 CCI products and layered CSfC solutions, the C175N CHVP encryptor provides HAIPE-compliant security in a single device with less stringent, non-CCI handling. In addition to the security and handling, the small form factor and mission focused features make the C175N ideal for mobile and high risk environments.

To learn more about the differences between Type 1 products and layered CSfC solutions, click here. To learn more about CHVP encryptors, visit the CHVP resource page.

DYNAMIC CONNECTIONS IS BACK! REGISTRATION NOW OPEN FOR DC23

Request More Information

Ideal Applications

Remote/Telework and Executive Communications

Leave Behind

Unattended/Unmanned

Joint and Coalition Missions

Non-National Security Systems

CIKR/DIB

See It In Action

POWERFUL PERFORMANCE WITH LOW SWAP

The smallest, lightest certified HAIPE encryptor for voice, video and data classified TS/SCI and below with 200 Mb/s aggregate throughput. Learn how this security solution provides end-to-end data protection for high risk and unmanned missions.

Learn More About The TACLANE-Nano

Securing the Mission - TACLANE-Nano, TACLANE-C175N

WHAT'S YOUR USE CASE?

Extremely compact and mobile, the TACLANE-Nano (KG-175N) and TACLANE-C175N CHVP encryptors provide end-to-end Type 1 encryption in the smallest, lightest and lowest power configuration of any HAIPE device available today. these encryption solutions safeguard your mission in any tactical mobile environment.

DOWNLOAD POSTCARD

FEATURES

Bridges NSA certified security with COTS handling
Supports asymmetric traffic flows of 200 Mb/s aggregate throughput
Designed to protect information classified Secret and Below
HAIPE and commercial IPSEC interoperable
Small size (1.2”H x 3.5”W x 2.25”D)
Low power (5 Watts typical)
Hot swappable/redundant power from USB or Power over Ethernet (POE)
Render Useless Zeroize (RUZ) feature for unattended operations
MIL-STD-810G ruggedized / MIL-STD-461F EMI complaint
Crypto Modernization compliant
For high risk, hostile environments
- Telework, Unattended, leave behind and non-national security system (NSS) applications
Supported by GEM One Remote Encryptor Manager
NEW! TACLANE Universal Rack Mount Shelf Kit - specifically designed, tested, and validated for use with TACLANE-C175N

TACLANE-C175N Datasheet	Request Datasheet
Size	1.2"H x 3.5"W x 2.25"D 4 across, 1U 19” rack mountable Weight: <8 oz
Power	5 Watts (Typical) Battery: Coin-cell battery (CR2450N) MIL-STD 461F compliant USB power supply
Performance	Supports Asymmetric traffic flow of 200 Mb/s aggregate throughput
Environment	MIL-STD-810G compliant Operating Temp: -40° to +60°C Storage Temp: -40° to +85°C Humidity: 95% RH, Non-condensing Operational Altitude: 1,500 ft below sea level to 50,000 ft above sea level Storage/transit Altitude: 1,500 ft below sea level to 70,000 ft above sea level Shock/Vibration: 40g shock, 11ms Transportation Vibration, General Vibration, Category 4 Sand: 40 mph winds Dust: 20 mph winds Rain: Drip, Flow Rate 280 liters/meter²/hour Drop Test: 48” High Drop EMI/TEMPEST: In accordance with NSTISSAM TEMPEST/1-92 Level 1
Standards Compliance	HAIPE v4.2.5 KMI OTNK HAIPE VLAN IMPEIR v1.0

24/7 CUSTOMER SUPPORT

You are never alone when you partner with General Dynamics to secure your critical information. With the largest deployed base of NSA-certified encryptors worldwide, General Dynamics is committed to support our customers worldwide with a 24/7 technical Help Desk.

Help Desk — Contact our technical Help Desk 24 hours a day / 7 days a week:

877-230-0236

Our Infosec support page is designed to make it easy for customers to access the information they need. Please visit www.gdmissionsystems.com/infosecsupport for the following support features:

Product Update Notifications — Sign up to receive newsletters and product update information via E-mail
Warranty Status — Enter the serial number of your encryption device to find out the date your warranty or maintenance expires
Depot Status— Track your encryptor through the depot
Order Status— Track the status of your orders
Software Requests — TACLANE encryptors are Field Software Upgradeable locally, via GEM One or the TACLANE Configuration Tool (TCT). To request software upgrades for TACLANE, GEM One software or Computer Based Tutorials (CBTs), use this link.

Literature

Pricing

To see our TACLANE-C175N pricing list, please contact us.

On-Demand Webinars Available

CHOOSING THE RIGHT SECURITY SOLUTION: Evaluate the differences between high assurance Type 1 and Commercial Solutions for Classified (CSfC) encryption solutions to determine which method is best for securing your classified information.

Click here to watch our on-demand webinars

It is important for users to ensure their TACLANE-based security solutions are integrated and used with approved ancillary equipment to comply with mission requirements. By using ancillary equipment that has been tested and validated by General Dynamics for use with TACLANE devices reduces risks associated with interoperability, redundancy, environmental factors and even warranty coverage. Please refer to the TACLANE Approved Products List (APL) for a complete list of tested and approved ancillary items available for purchase and supported by General Dynamics. If you have a requirement for an item that is not listed, please contact us.

DOWNLOAD THE TACLANE APL Catalog

Accessories and ancillary options include:

	TACLANE Approved Products
	TACLANE Universal Rack Mount Shelf Kit Standard 19” rack mount shelf includes adjustable ears for full extension of up to 24”-30”D and includes hardware to securely hard-mount a combination of TACLANE products including power supplies. P/N: TLUR-KIT
	TACLANE Universal Rack Mount Shelf – Small Quick Disconnect Accessory Optional tray enables quick, easy mounting of up to (2) TACLANE-C175N/ TACLANE-Nano (KG-175N) encryptors per tray. Two Small Disconnect Accessory trays can be accommodated on the TACLANE Universal Rack Mount Shelf. P/N: TLUR-SMQD
	TACLANE Universal Rack Mount Shelf – Power Supply Quick Disconnect Accessory Optional tray enables quick, easy mounting of (1) power supply supporting TACLANE-C175N P/N: LUR-PWQD
	Standard Power Adapters and Locking USB Power Cable P/N:NN-PWR

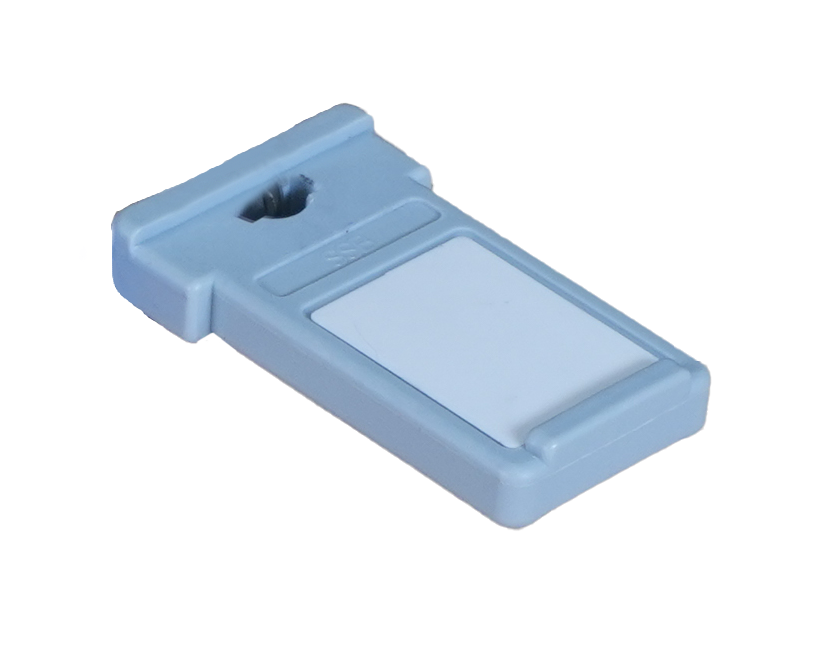

	TACLANE-C175N CIK P/N: C175N-101A
	Locking Console Cables P/N: NN-CON-L
	Locking Fill Cable P/N:NN-FILL-L
	Locking USB Power Cable (3 Foot) P/N:NN-PWRCBL3
	RJ45 10/100 Ethernet Cable (10 foot) P/N: NN-105A-L
	RJ45 10/100 Ethernet Cable (6 foot) P/N: NN-105B-L
	Soft Sided Carrying Case P/N: NN-CASE-S
	Ruggedized Carrying Case P/N: NN-CASE-R
	TACLANE-C175N Travel Kit P/N: NN-KIT-T The Travel Kit provides users with a compact case to easily transport or store one TACLANE-C75N CHVP and supporting equipment. The soft-sided carrying case is constructed of two thermoformed shells with a zippered closer, a mesh pocket and custom inserts. The Travel Kit includes all the cabling necessary to operate a single TACLANE-C175N device: (1) Locking Fill Cable, (1) Locking Console Cable and (2) 10’ RJ45 10/100 Base T Ethernet Cables. The TACLANE-C175N device is sold separately. Case dimensions: 3.7” H x 10.8” W x 8.5”D
	TACLANE-C175N Ruggedized Kit P/N: NN-KIT-R The Rugged Kit is designed to protect the TACLANE-C175N CHVP and supporting equipment during transport in a watertight, crushproof, dustproof enclosure. The IP-67 rated Ruggedized Carrying Case is made of ultra high impact structural copolymer that makes it extremely strong and durable protecting against impact, vibration and shock. The custom foam trays are designed to hold (3) TACLANE-C175N devices, (3) power adapters and cabling. The Rugged Kit includes: (1) Locking Fill Cable, (1) Locking Console Cable and (2) 10’ RJ45 10/100 Base T Ethernet Cables. The TACLANE-C175N device is sold separately. Case dimensions: 6.0” H x 13.4” W x 11.6”D
	TACLANE-C175N Adapter Module (for KG-175D) P/N: NN-AM175D The TACLANE-C175N Adapter Module (for KG-175D) is a ruggedized enclosure that can be used with the TACLANE-C175N CHVP encryptor to provide an exact form/fit replacement for the KG-175D. It also provides the exact same power and network interfaces, eliminating the need for any rewiring or changes to existing mounting, shelving or enclosure configuration providing the most cost effective alternative for KG-175D replacement considering both equipment and logistical costs.

Items can be purchased on IDIQ or directly from General Dynamics Mission Systems. For more information please contact our INFOSEC team at (781) 410-9400, (888) 897-3148 or by filling out our form.

Which TACLANE Is Right For Your Mission?

Certified to protect information classified Top Secret/SCI and below, the TACLANE portfolio extends from ruggedized, small form factor Inline Network Encryptors (INE) to high performance encryption platforms (200 Mb/s to 20 Gb/s aggregate throughput). Compare our TACLANE network encryptors and see which one is best for your mission.

Compare TACLANE Encryptors
