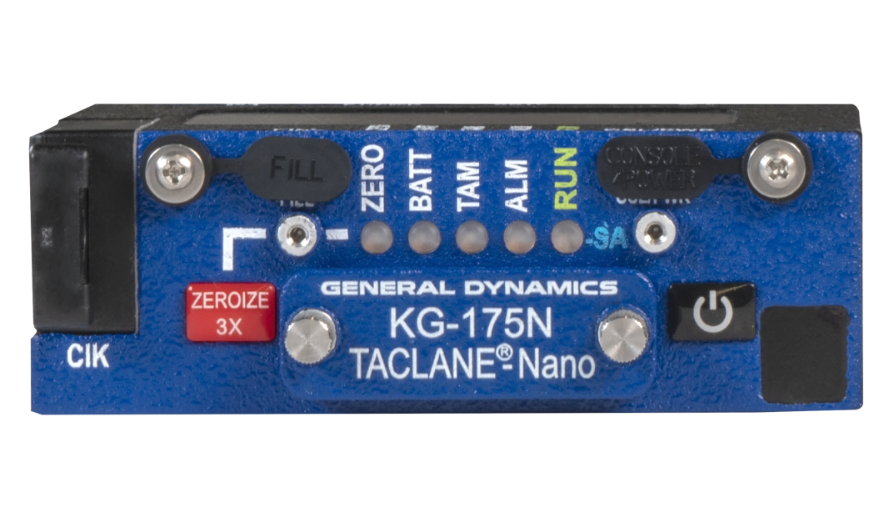

TACLANE-Nano (KG-175N) Encryptor

Smallest, Lightest HAIPE® For Mobile Applications

Extremely compact and mobile, the new TACLANE-Nano provides end-to-end HAIPE encryption in the smallest, lightest and lowest power configuration than any HAIPE device available today. From battlefield to briefcase, the TACLANE-Nano is ruggedized to withstand the rigors of any mobile environment including tactical, mobile applications such as telework, dismounted deployments, and integration into mobile communications kits. The TACLANE-Nano is designed with the latest in crypto modernizaton technology to provide protection for information classified TS/SCI and below at 50 Mb/s throughput.

The TACLANE-Nano extends to multiple mobile applications including:

  • Mobile Communications - Telework, Travel, Field Agent, Flyaway Kits
  • Dismounted, Tactical Forward Deployed
  • Unmanned Systems and Intelligence, Surveillance, Reconnaissance (ISR) Operations
  • Covert Operations



The TACLANE-Nano is currently in development and expected to be submitted for NSA certification 4Q 2018. Sign Up here to recieve product updates.


Features

The TACLANE-Nano will support optional software such as VLAN and TCP Performance Enhancing Proxy (PEP). Remote management and configuration is supported via the GEM One Encryptor Manager to simplify operation and enable centralized secure management of all of your TACLANE devices on the network.

  • Designed to protect information classified TS/SCI and Below

  •  Simultaneous HAIPE v4.1 and IPMEIR 1.0 compliant

  • Simultaneous Suite A/B without user intervention

  • 50 Mb/s throughput (100 Mb/s aggregate )

  • 1.18”H x 3.5”W x 2.25”D

  • Low power (<5 Watts)

  • Power from USB or Power over Ethernet (POE)

  • MIL-STD-810G ruggedized / MIL-STD-461F EMI compliant

  • Supports optional Agile VLAN feature and TCP PEP

  • Safe Keying features

  • ACC and KMI OTNK compliant

  • DS-101 Key Fill

  • Plain Text RJ-45/USB

  • Cipher Text RJ-45

  • IPv4/6 Dual Stack

TACLANE and GEM are trademarks of General Dynamics. HAIPE is a registered trademark of the National Security Agency. All other product and service names are the property of their respective owners.

  • Features

    Features

    The TACLANE-Nano will support optional software such as VLAN and TCP Performance Enhancing Proxy (PEP). Remote management and configuration is supported via the GEM One Encryptor Manager to simplify operation and enable centralized secure management of all of your TACLANE devices on the network.

    • Designed to protect information classified TS/SCI and Below

    •  Simultaneous HAIPE v4.1 and IPMEIR 1.0 compliant

    • Simultaneous Suite A/B without user intervention

    • 50 Mb/s throughput (100 Mb/s aggregate )

    • 1.18”H x 3.5”W x 2.25”D

    • Low power (<5 Watts)

    • Power from USB or Power over Ethernet (POE)

    • MIL-STD-810G ruggedized / MIL-STD-461F EMI compliant

    • Supports optional Agile VLAN feature and TCP PEP

    • Safe Keying features

    • ACC and KMI OTNK compliant

    • DS-101 Key Fill

    • Plain Text RJ-45/USB

    • Cipher Text RJ-45

    • IPv4/6 Dual Stack

    TACLANE and GEM are trademarks of General Dynamics. HAIPE is a registered trademark of the National Security Agency. All other product and service names are the property of their respective owners.

  • Literature

TACLANE Mission Brief
