TACLANE-Micro (KG-175D) Encryptor

Photos

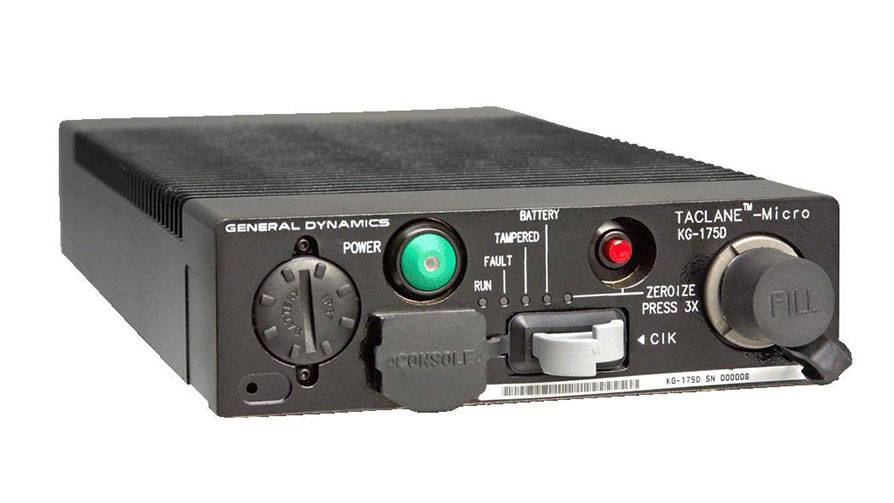

Cyber and Electronic Warfare Systems - General Dynamics TACLANE-Micro (KG-175D) Encryptor - Image

The World’s Most Widely Deployed HAIPE Encryptor - Now Advanced Cryptographic Capabilities (ACC) Compliant

TACLANE-Micro is the most widely deployed High Assurance IP Encryptor (HAIPE) and Crypto Modernization Compliant encryptor. The Micro is field proven and reliable to withstand both tactical and strategic environments.

New R4.3 software upgrade provides modernized cryptographic algorithms to defend against advanced cyber threats and Key Management Infrastructure (KMI) Over-the-Network Keying (OTNK) support for faster, simpler and safer operations.

The Next-Gen Crypto Modernization Solution is Here!

It's Time to Transition to TACLANE^®-FLEX, the Smallest, Lightest, Most Efficient 1 Gb/s HAIPE

TACLANE-FLEX is the next generation product in a TRUSTED encryption portfolio. Designed for EFFICIENT performance and SWAP-C, the FLEX is SCALABLE to support tomorrow’s mission requirements and ENHANCED with advanced security and user features.

LEARN MORE

TACLANE-FLEX proven to withstand extreme temperatures

TACLANE Encryptors Endure MIL-STD Ruggedized Testing

Next generation TACLANE encryption products are rugged and stand ready to secure your tactical mission. What do we mean by rugged? Check out this video of the TACLANE-FLEX (KG-175F) and TACLANE-Nano (KG-175N) MIL-STD-810G testing!

WATCH NOW

Secure Mobile Communications at the Tactical Edge

Introducing TACLANE^®-Nano: The Smallest, Lightest HAIPE^® for Mobile Applications

TACLANE-Nano is the new small form factor addition to the TACLANE family of HAIPE encryptors. Offering 50 Mb/s throughput and power options, the Nano provides end-to-end secure voice, video and data in mobile environments.

LEARN MORE

Features
Specifications
Training
Upgrade Information
Customer Support
Literature and Pricing

Features

Designed for evolving cybersecurity requirements, TACLANE-Micro will be capable of providing broader security features to address emerging national threats. TACLANE will lead the market with enhanced capabilities for support of critical services in a high assurance HAIPE device.

Ruggedized, mobile, lightweight (4.25 lbs) and low power
Certified to protect information classified Top Secret Codeword and below
HAIPE v4.2.5 certified
Designed to meet evolving cybersecurity requirements
Seamless foreign interoperability
Remote HAIPE-to-HAIPE keying
Suite A/ Suite B / IPMEIR algorithm agility (per packet basis) - no manual intervention required
IPv4/IPv6 dual stack
200 Mb/s aggregate throughput
Remote management via GEM® One Encryptor Manager
Advanced Cryptographic Capabilities (ACC) Compliant
KMI Over-the-Network Keying (OTNK)

Optional Feature Enhancements

Agile Virtual Local Area Network (VLAN): Enables use of HAIPE security features on Layer 2 VLAN/Non-IP Ethernet traffic while simultaneously supporting standard HAIPE encryption of IP traffic. Benefits include:

Elimination of GRE tunnels
Redundancy
Load balancing

TACLANE and GEM are trademarks of General Dynamics. HAIPE is a registered trademark of the National Security Agency. All other product and service names are the property of their respective owners.

TACLANE Micro Data Sheet	View Document
Size	1.6"H (IU) x 5.5"W x 10.85"D Up to 3 units mounted side-by-side in 19" rack Weight: 4.25 lbs.
Power	25 Watts Lithium 3.6V for extreme environments User replaceable battery Standard alkaline AA battery for benign environments Passively cooled via natural convection MIL-STD 461E EMI-compliant power supply included
Speed	Full bandwidth, 200 Mb/s aggregate 10/100 Mb/s auto negotiation (full/half duplex)
Standard Compliance	HAIPE v4.2.5 IPMEIR v1.0 HAIPE VLAN ACC and KMI OTNK

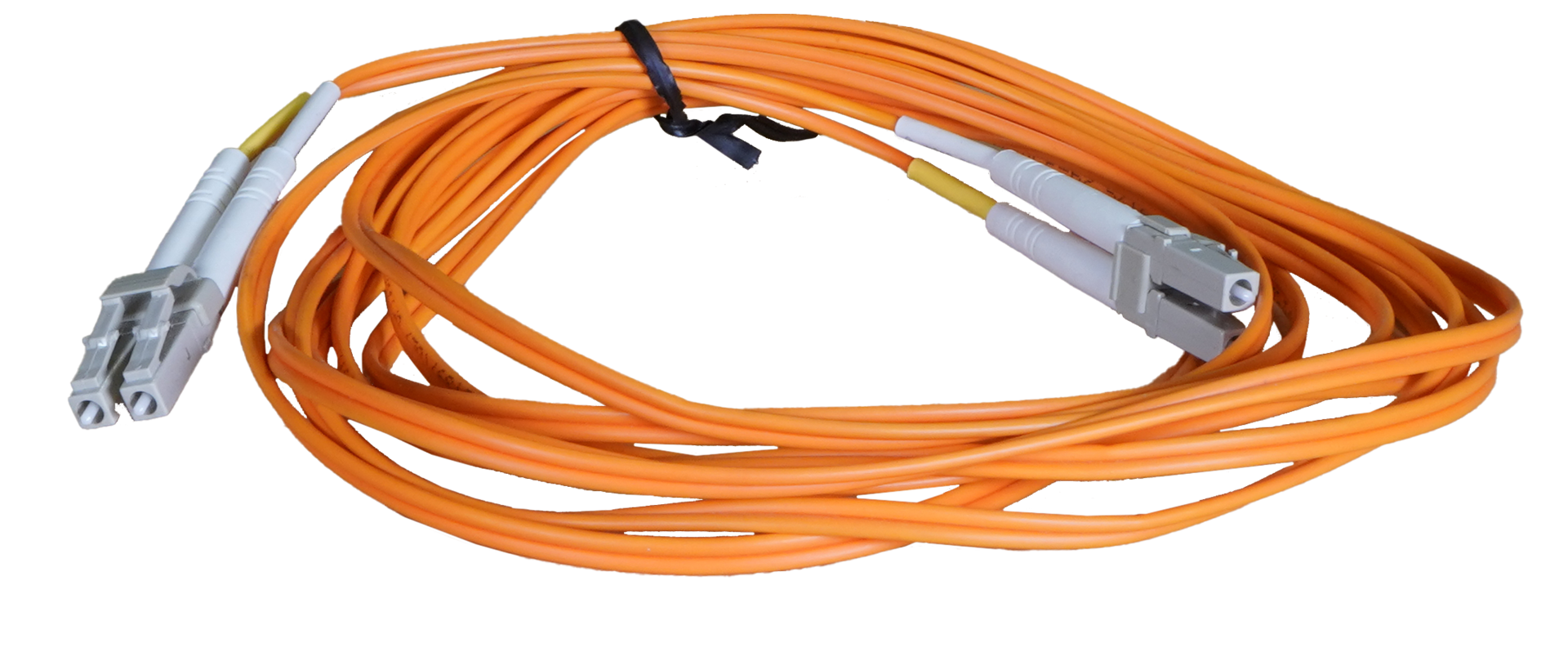

Interface	PT and CT Data Ports: 100 FX, 1300nm Optical short reach (Multimode Only) 10/100 Base-T (RJ-45) auto negotiation Stanard DS-101 Key Fill Port Key Fill Bus Capability* Primary Power 12VDC Remote zeroize input
Environment	Operating temperature: -40°C to 60°C (-40°F to 140°F) Storage temperature: -40°C to 71°C (-40°F to 160°F) 95% humidity (non-condensing) MIL-STD 810 (shock, vibration, sand/dust, rain, altitude) MIL-STD 167-1 (vibration) MIL-STD 901D (Navy hammer shock) MIL-STD 461E (electromagnetic compatibility)
TEMPEST	In accordance with NSTISSAM TEMPEST/1-92 Level 1
Altitude	Storage/transit:1,500 ft, below sea level to 60,000 ft above sea level Operational: 1,500 ft below sea level to 50,000 ft above sea level
Reliability	320,000 Hrs Mean Time Between Failure (Ground fixed benign)
Security Associations (SAs)	Supports large networks with 512 fully meshed nodes simultaneously Existing connections replaced as needed 8,000 Hosts allocated over active security associations
Keys	Supports HAIPE to HAIPE Keying, APPK/ PPK, FIREFLY, Enhanced FIREFLY, Internet Key Exchange (IKE) v1/v2, Unclassified/Classified Device Generated Shared Key (DGSK), ACC, OTNK (KMI enabled)
Low Latency	Ideal for time delay critical applications (VoIP and satellite) Does not exceed 59 microseconds for ≤46 byte packet (IPv4) Does not exceed 73 microseconds for ≤64 byte packet (IPv6)
Management	Perform locally via front console, or remotely via CT or PT interface. Local Management: Web-based using standard browser Retains menu TACLANE structure and command Optional Remote Management: Standards-based SNMP v3 HAIPE IS, Standard and Enterprise MIBs supported Up to 12 simultaneous remote managers Over the network software upgrade Reprogram algorithms, protocols and interfaces
Network Protocols	Ethernet IPv4/IPv6 Dual Stack IPv6 neighbor discovery and address resolution Address Resolution Protocol (ARP) Internet Group Management Protocol (IGMP) (v1/v2/v3) Queries/reports Multicast Listener Discovery (v1/v2) Internet Control Message Protocol (ICMP) Path Maximum Transmission Unit (PMTU) RIP Listener/Speaker
NAT Support	NAT-T Automated Security Association Extension
Reachability	Peer HAIPE Reachability Detection (PHRD) Peer Destination Unreachability Notification (PDUN)
Discovery	Generic Discovery Client Static Routing IM PEPD HAIPE IS Secure Dynamic Discovery
Interoperability	Interoperable with all HAIPE compliant encryptors
Foreign Interoperability	Algorithm Agile - Simultaneous Suite Suite A/B/AES-EFF/IPMEIR without manual intervention P₃, S₂, Q₂
Ease of Use & Management Tools	GEM One Encryptor Manager - Manage a network of TACLANE encryptors remotely from a central location Generic Discovery Server (GDS) - Automatically discovers HAIPE devices Quick Start Wizard - Assists users with initial configuration of the unit TACLANE Configuration Tool (TCT) - Assists users with the upgrade configuration process

*Hardware in place for addition of feature
