HOOK3 Combat Survival Radio
Now GPS SAASM Approved – M-Code Upgradeable

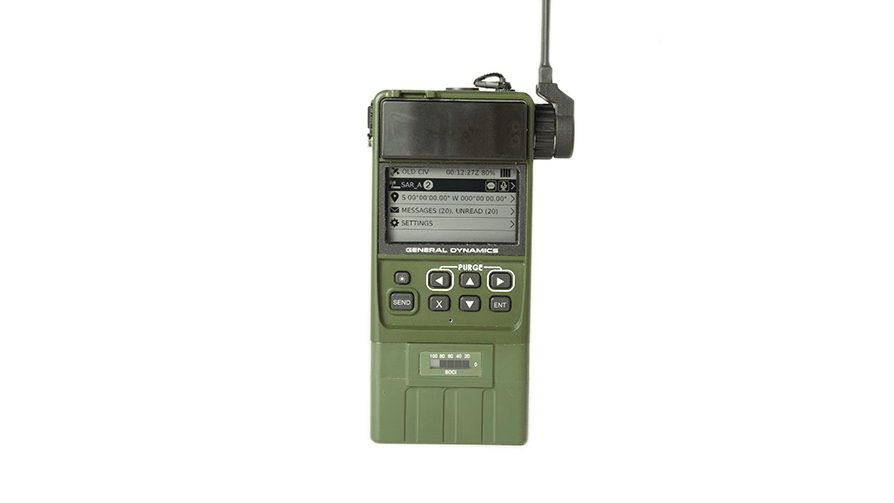

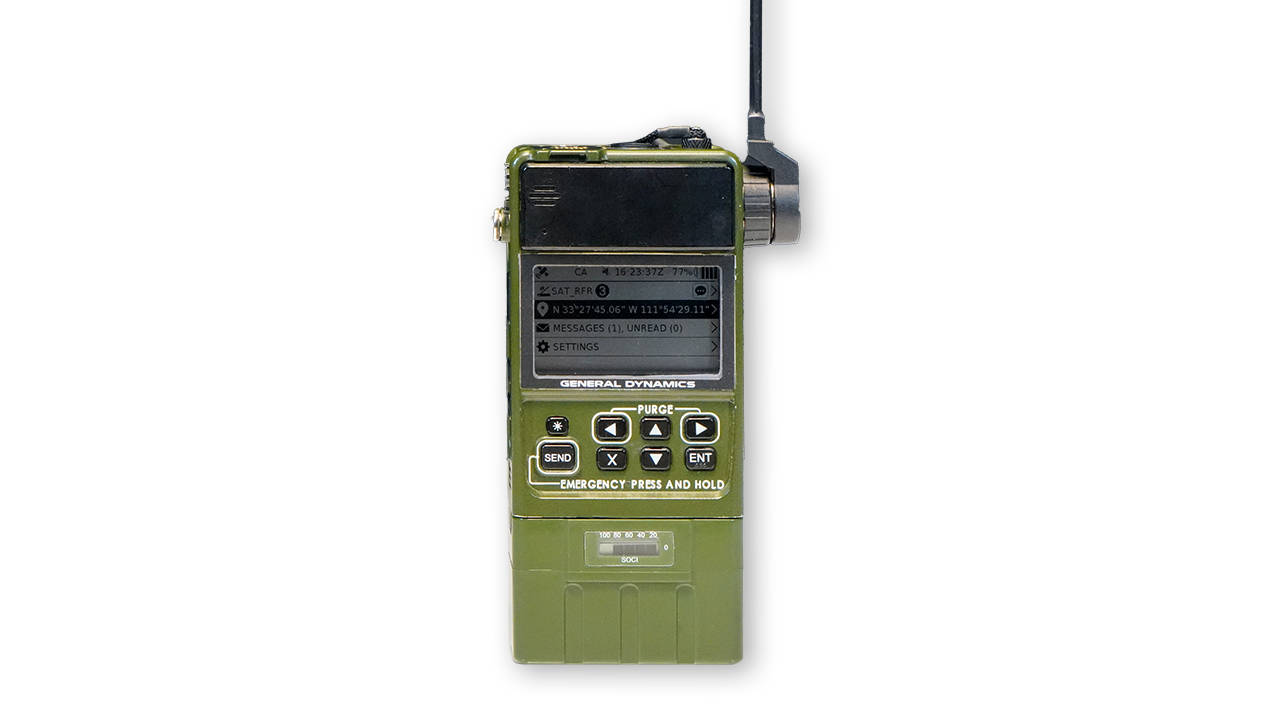

The HOOK3® Combat Survival Radio (CSR) provides direct, line-of-sight voice and encrypted two-way data communications that help combat search and rescue teams quickly locate and rescue downed pilots and isolated military personnel. The radio sends encrypted global positioning information, user identification and situation reports to provide rescue teams and aircraft operating in hazardous conditions with quick and accurate location information.

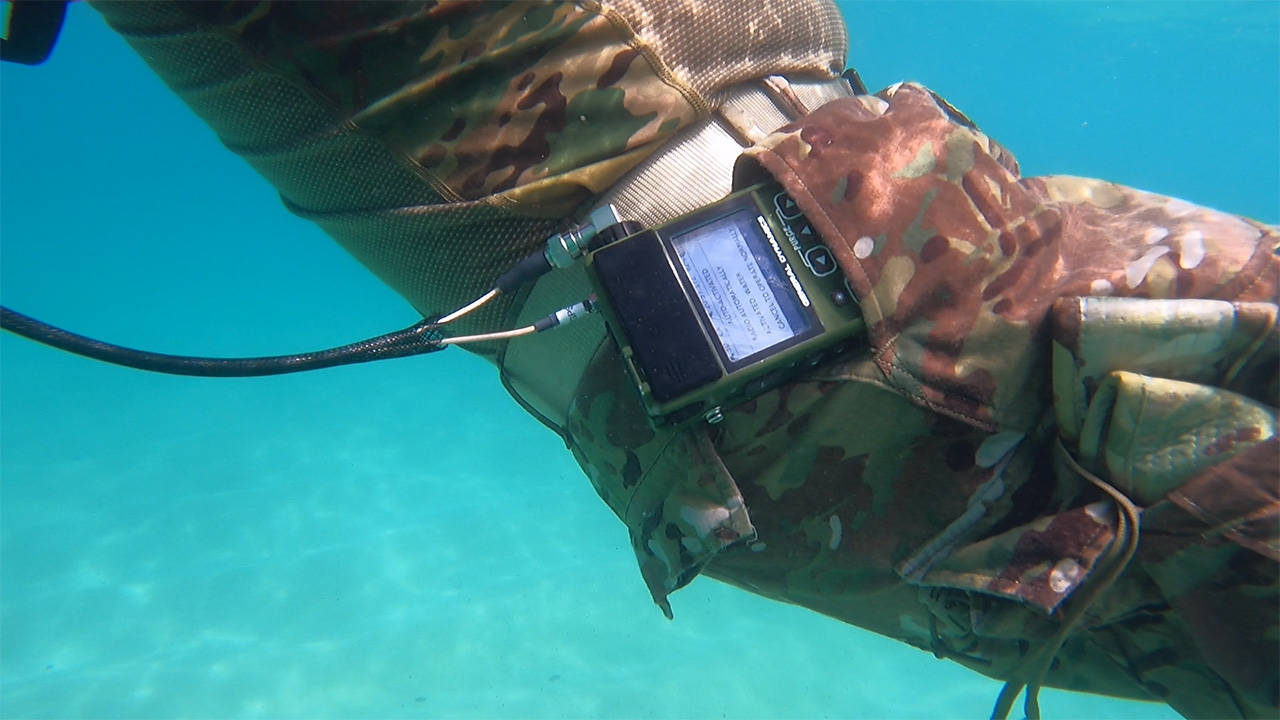

- Automatically activates when G-Force or saltwater is detected
- Smaller, lighter and better power efficiency than previous CSAR radios
- GPS SAASM Approved – M-Code Upgradeable
- Cospas-Sarsat approved and supports multiple Global Navigation Satellite Systems (GNSS)
- Web browser administration (no Program Loader block)
- Fully compatible with existing HOOK2 assets (HOOK2 radios, QuickDraw2, SATCOM Base Station)
U.S. Air Force Utilizes HOOK3 Radio During Simulated Rescue Mission
Our HOOK3 Combat Survival Radio team recently joined an Air Force Operational Unit Evaluation which included a simulated search and rescue mission to locate a downed NASA crew.
The exercise simulated a launch abort and subsequent splashdown in the Atlantic Ocean, out of range and out of reach of existing planned rescue resources.
Features
The new HOOK3 radio is significantly smaller, lighter and has better power efficiency than previous CSAR radios, allowing a crew member to carry a single radio as opposed to multiple pieces of equipment. Interoperable with all HOOK2® family radios, Quickdraw2 and SATCOM Base Station in use by U.S. and international customers, the HOOK3 CSR is ideal for unilateral or coalition operations. The user-friendly CSR transceiver is software defined, meaning new features, waveforms and software upgrades can be added as they become available.
The new HOOK3 radio features direct, line-of-sight voice and encrypted two-way data communications between survivor and rescue forces (TAC). In addition, the radio incorporates a PLS DME transponder and beacon for terminal guidance (TAG). For assured communications with rescue personnel, the radio communicates to our plug-and-play Quickdraw2® Interrogator onboard a wide variety of rescue platforms, and can also be interrogated by the Rockwell Collins RSC 125G or Cubic PLS AN/ARS-6(V12). Because the radio automatically responds to interrogations, rescue forces can extract the survivor’s GPS coordinates from the radio without operator intervention.

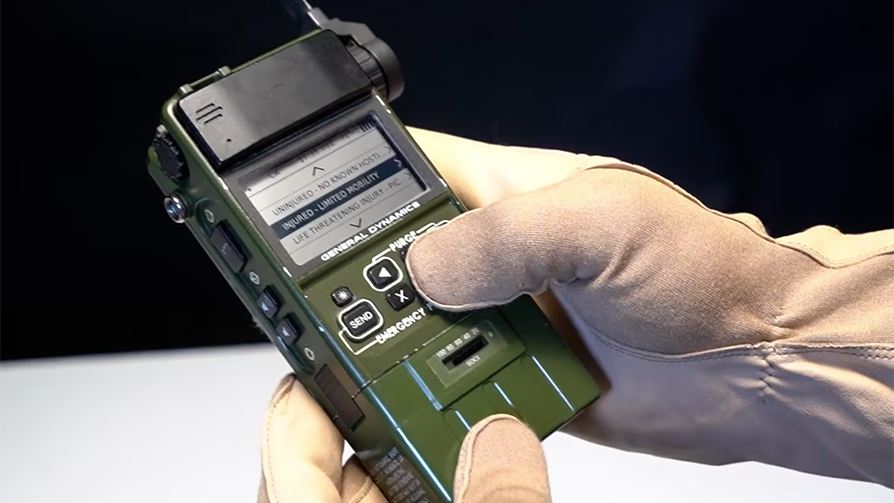

Secure Information in Just One Button Press
The upgraded CSR sends encrypted global positioning data (lat/long), user identification code, text messages, and situation reports. This provides quick and accurate location and rescue information for air crews, forward air controllers, and personnel operating in hazardous conditions. A single, short encrypted burst to CSAR aircraft offers low risk of detection and interception. Two-way SATCOM and 406 SARSAT beacon modes provide a real-time, direct, over-the-horizon communications path between survivor and rescue personnel.
One Radio for Downed Aircrew Search & Rescue Response
The CSR allows a crew member to carry a single radio and satisfy Emergency Location Transmitter (ELT) or Personal Locator Beacon (PLB) functions. It will auto-activate with either G-Force or salt water and transmit location data through 406 Cospas-Sarsat or the HOOK waveform. It can also be configured for 121.5 MHz or 243 MHz swept tone beacon.
Additional Features & Benefits
- User friendly, software-defined transceiver enables waveforms and software upgrades to be added as they become available
- Smaller size allows crew members to carry a single radio to satisfy Emergency Location Transmitter (ELT) or Personal Locator Beacon (PLB) functions
- Single, short encrypted bursts sent to CSAR aircraft significantly lowers risk or detection and interception
- Two-way SATCOM and 406 SARSAT beacon modes provide a real-time, over-the-horizon communications path between survivor and rescue personnel
- Configurable for 121.5 MHz or 243 MHz swept tone beacon
Download The HOOK3 Combat Survival Radio Infographic
Specifications
|
HOOK3 Datasheet
|
View Document
|
|---|---|
| Frequency Range | 121.5, 123.1 MHz; 225–320 MHz; hardware capable of 100 - 512 MHz; 406 SARSAT |
| Tuning increments | 25 KHz steps (LOS); 5 KHz steps (SATCOM) |
| Frequency stability | ± 1ppm |
| Modulation | AM voice; AM swept-tone beacon; PLS DME; Transponder mode: BPSK/OOK; HOOK mode: MSK 1200 BPS; SARSAT mode: BPSK; SATCOM mode: BPSK |
| Data burst | Encrypted (LOS and SATCOM) includes ID, GPS Coordinates and Text Message |
| Operating modes | Voice Swept-tone beacon PLS DME transponder GPS Interrogation (LOS or SATCOM) 406 SARSAT (TAC #723) UHF SATCOM |
| Weight | 24 oz. with battery |
| Size (with battery) | 6.4 in x 2.90 in x 1.56 in 6.4 in x 2.90 in x 1.90 in with SAASM |
| Operational temp. | –40°C to +55°C |
| Storage temp. | –40°C to +80°C |
| Battery | Primary and Rechargeable Batteries |
| Battery life | SARSAT certification for 24 hours with MAI-150801 |
Receiver Characteristics
| Sensitivity (typical) | –100dBm (VHF AM Voice) –104dBm (UHF AM Voice) –138dBm (UHF SATCOM data) |
| IF selectivity (typical) | <6 dB @ Fo ± 30 KHz >50 dB @ Fo ±140 KHz |
| Spurious response | 50 dB(typical) |
| Image response | 40 dB min. |
| Audio response | 500 Hz to 3500 Hz |
| Distortion (typical) | 10 percent |
| Audio output (typical) | 50 milliwatts |
Transmitter Characteristics
| Average power | 1 Watt – UHF; capable of 5W (FM) (future) 200 mW – VHF; capable of 2W (FM) (future) 406 SARSAT 5.0W min. UHF SATCOM 5.0W ± 2 dB |
| Modulation | 86% AM |
| Harmonics | ≤30 dB below carrier |
| Distortion | 5% typical at 86% modulation |
GPS/Navigation
| GPS General Characteristics | - Civilian: C/A state-of-the-art GPS Receiver, parallel L1 band only; multiple international constellations supported - Military SAASM (opt): 12 channel, L1 and L2 bands. |
| Sensitivity | Civilian: -145 dBm Military: -132 dBm |
| Accuracy | Civilian: < 25 meters |
| Navigation | up to 250 waypoints |
| Coordinate system | Geodetic (lat./long.) GEO, GEO2, UTM, MGRS |
Ancillaries
- Primary and Rechargeable batteries
- Primary Communication Antenna
- Spare Antenna
- Remote Antenna Kit
- Earphones
- Headset with microphone
- USB Provisioning cable
- DS-101 Key Fill cable
- Protective Faceplate/Display Cover
- AC/DC Battery Eliminator(s)
- Pouch
- Antenna Adapters
- Battery Charger
The CTS-6025 CSAR Radio Test Set designed by Astronics is the preferred test set for the HOOK2 and HOOK3 radio. The CTS-6025 combines over 16 instruments into one and offers fault detection and operational verification of your radio communications at all levels of deployment.
The CTS-6025 is the most comprehensive communications tester for field testing, reducing testing time and cost, maintenance and calibration costs, lifecycle ownership costs, and the number of “no fault found” results. The CTS-6025 is a complete test system that can test tactical handsets, amplifiers, couplers, cabling, antennae, or any other component of your system.
- Offers fault detection and operational verification of radio communications at all levels of deployment
- Guided scripted radio testing that quickly provides consistent, cataloged test results
- Removable solid state hard drive protects mission critical data
- Most comprehensive communications tester for field testing
Powerful - 16+ instruments in one
- Reliable - Fewer frustrating “no fault found” results
- Flexible - Modular, customizable architecture makes it future-proof
- Intuitive - Windows-based interface
- Portable - Small size and light weight
- Lower cost – Reduced maintenance, calibration, and lifecycle ownership costs
- Secure - Cybersecure software
- Supportable – Dedicated engineering, factory, and field support staff
16+ Test Instruments Including:
- RF signal generator, receiver, power meter
- RF analyzers – spectrum, VSWR, cable distance-to-fault
- AF signal generator
- Audio meters – SINAD/distortion, frequency, audio filters
- Oscilloscope, reference oscillator
- Digital interfaces
- Tracking generator
- Error vector magnitude (EVM)
- Wideband streaming TX and RX
- Real-time RF burst trigger
- Power analyzer
- NVM and data loader
Training
We currently offer operation and maintenance training for Combat Search and Rescue radio products at our Scottsdale facility, which is conveniently located seven miles from Phoenix Sky Harbor International Airport. If you’d prefer for us to come to you, Customer Onsite Training is also available: please contact us for a quote.
Training Topics
- CSR Operation
- Quickdraw Operation
- Programming and Maintenance
- Base Station Operation
- SARSAT Option Training (module added as required)
- SATCOM Option Training (module added as required)
For full syllabus details, please download the HOOK3 Systems Operation Training Outline.
Pricing
Please contact us if you require a formal quote for training class funding.
Classes are scheduled for a maximum of 15 students. General Dynamics Mission Systems reserves the right to cancel or reschedule any course due to low enrollment, schedule conflicts, or other reason beyond our control. Changes will be announced a minimum of two weeks prior to the published course date being canceled or changed.
