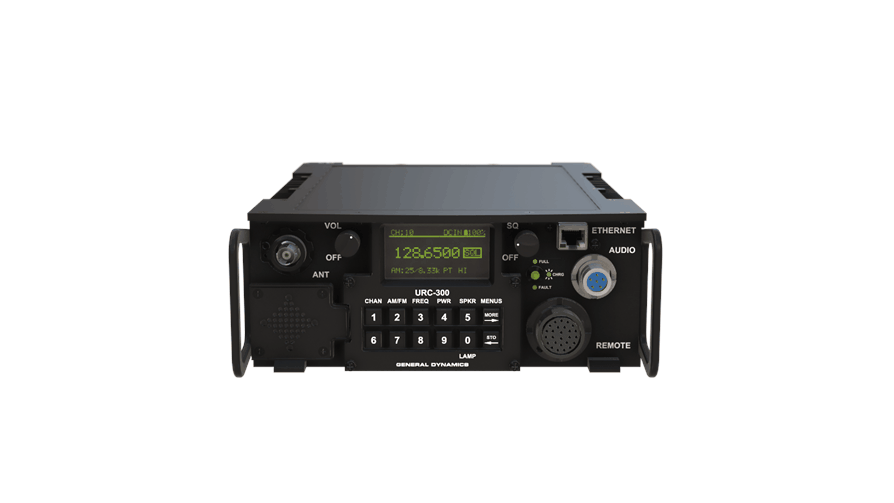

URC-300 Line of Sight (LOS) Transceiver

Redefining Software Defined

The new URC-300™ Line-of-Sight Transceiver is specifically designed to improve ground-to-air communications and has the flexibility to be updated as new technology becomes available. The URC-300 has a similar user-friendly interface as the URC-200™ (V2) and is built with a software-based architecture which makes it easier for users to customize their radio to fit their mission needs. Current features include:

  • Significant RF performance over the URC-200 (V2) for clearer communications in congested environments
  • Software-defined architecture designed specifically for future customizable enhancements
  • VHF/UHF AM Voice (FM optional)
  • ETSI EN 300 676-1 compliant for 8.33kHz and 25 kHz
  • Smaller and lighter than the URC-200 (V2)



Highly Versatile & Easy To Use

The URC-300 is a software-based customizable Line of Sight platform that improves ground-to-air communications and enables future enhancements.

  • VHF and UHF AM capability provides interoperability with a variety of RF systems
  • Adaptable to many applications, including manpack, rackmount, vehicular and intercom
  • All frequencies are easy to set with access via the front-panel control presets and web-based GUI

Additional Features

  • General Dynamics URC-300 Line of Sight Radio With Operator 2Significant RF improvement over the URC-200 (V2) LOS Transceiver
  • 8.33 ETSI performance for global operations
  • Customizable platform for future enhancements based on user needs
  • Highly versatile VHF and UHF AM capability provides interoperability with a variety of RF systems
  • Adaptable to many applications, including manpack, rackmount, vehicular and intercom
  • Ethernet SNMP interface for remote control access
  • Remote Control SNMP command / control / BIT
  • All frequencies are easy to set and access via the front-panel control presets and web based GUI
  • Compatible with many of the legacy URC-200 family accessories
  • Side-by-side radios fit into a 19” rack

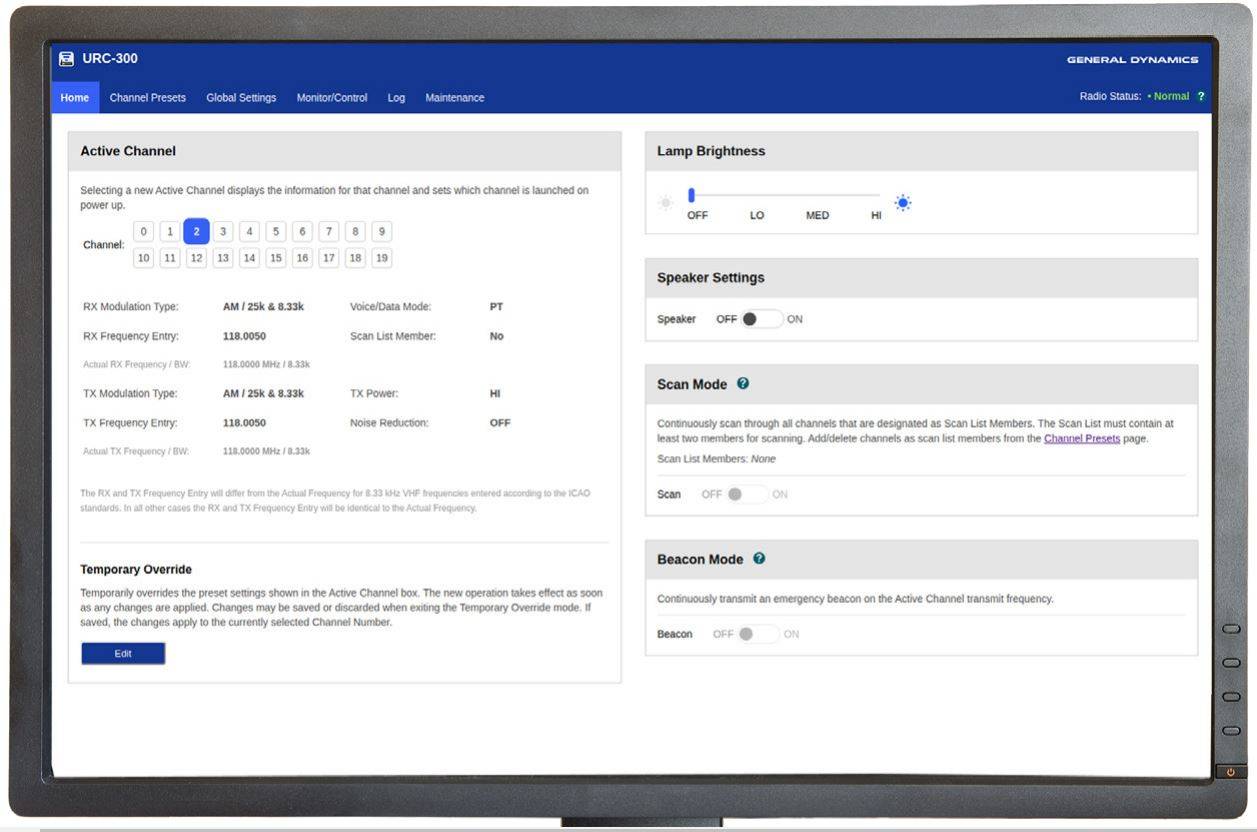

  • Web browser provisioning
  • 20 presets

Options

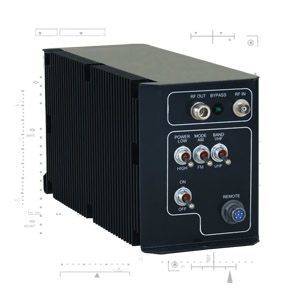

  • 50W power amplifier
  • Vehicular applications
  • Shipboard applications
  • Backpack applications
  • FM voice
  • Cypher text
  • 30 - 90 MHz frequency band
  • Remote Control Unit
  • VOIP VOAD Gateway Adapter
  • Frequency agile cosite filter

Specifications



URC-300 LOS Transceiver Datasheet





View Document



General


Frequency range VHF: 115 MHz to 149.9950 MHz
UHF: 225 MHz to 399.9950 MHz
Tuning increments 25 kHz, 12.5 kHz, 5 kHz and 8.33 kHz (opt.)
Channel Spacing 25 kHz, 8.33 kHz (optional)
Frequency stability <± 1 PPM
Remote SNMP V3
Preset Channels 20 transmit; 20 receive

Receiver Characteristics


Minimum Sensitivity
AM PT: -102 dBm for 10dB SINAD with 30% modulation at 1 kHz
Cross modulation
≥ 80 dB
Audio noise
≥ 40 dB
Image response
≥ 80 dB
Spurious response
≥ 80 dB
Squelch range
Operator adjustable from below sensitivity to above -80 dBm
Adjacent channel rejection
25 kHz: ≥60 dB
8.33 KHz: ≥ 60dB
FM Broadcast Intermod Immunity
≥ 90 dB

Transmitter Characteristics


Output power
1W to 7W (cw) user adjustable in 0.2W steps
10W avg ± 2 dB @ 90% AM
Modulation
30 - 90% user adjustable
Spurious output
≥85 dB below the carrier typical
Harmonic output
≥75 dB below the carrier typical
Adjacent Channel Power
25kHz: ≤ 60 dB
8.33kHz: ≤ 50 dB

Physical Characteristics


Weight
9 lbs. (less batteries)
Dimensions
7.5” L x 9” W x 3.7” H
(without battery and handles)
Environmental
Environmentally tested for humidity, vibration, shock/drop, rain/drip-proof
Temperature
-20˚C to +55˚C (operating)
-50˚C to +70˚C (non operating)

Power Supply


Battery
BB-2590 (rechargeable)
AC
90 – 260 VAC, 47 – 63 Hz
DC
9 – 40 VDC
Battery case dimensions
5.2” L x 10.3” W x 2.8” H
Current drain (+28 V)
High power<2.5 amps
Receive 360 mA



  • Features

    Additional Features

    • General Dynamics URC-300 Line of Sight Radio With Operator 2Significant RF improvement over the URC-200 (V2) LOS Transceiver
    • 8.33 ETSI performance for global operations
    • Customizable platform for future enhancements based on user needs
    • Highly versatile VHF and UHF AM capability provides interoperability with a variety of RF systems
    • Adaptable to many applications, including manpack, rackmount, vehicular and intercom
    • Ethernet SNMP interface for remote control access
    • Remote Control SNMP command / control / BIT
    • All frequencies are easy to set and access via the front-panel control presets and web based GUI
    • Compatible with many of the legacy URC-200 family accessories
    • Side-by-side radios fit into a 19” rack
    • Web browser provisioning
    • 20 presets

    Options

    • 50W power amplifier
    • Vehicular applications
    • Shipboard applications
    • Backpack applications
    • FM voice
    • Cypher text
    • 30 - 90 MHz frequency band
    • Remote Control Unit
    • VOIP VOAD Gateway Adapter
    • Frequency agile cosite filter
  • Specifications

    Specifications



    URC-300 LOS Transceiver Datasheet





    View Document



    General


    Frequency range VHF: 115 MHz to 149.9950 MHz
    UHF: 225 MHz to 399.9950 MHz
    Tuning increments 25 kHz, 12.5 kHz, 5 kHz and 8.33 kHz (opt.)
    Channel Spacing 25 kHz, 8.33 kHz (optional)
    Frequency stability <± 1 PPM
    Remote SNMP V3
    Preset Channels 20 transmit; 20 receive

    Receiver Characteristics


    Minimum Sensitivity
    AM PT: -102 dBm for 10dB SINAD with 30% modulation at 1 kHz
    Cross modulation
    ≥ 80 dB
    Audio noise
    ≥ 40 dB
    Image response
    ≥ 80 dB
    Spurious response
    ≥ 80 dB
    Squelch range
    Operator adjustable from below sensitivity to above -80 dBm
    Adjacent channel rejection
    25 kHz: ≥60 dB
    8.33 KHz: ≥ 60dB
    FM Broadcast Intermod Immunity
    ≥ 90 dB

    Transmitter Characteristics


    Output power
    1W to 7W (cw) user adjustable in 0.2W steps
    10W avg ± 2 dB @ 90% AM
    Modulation
    30 - 90% user adjustable
    Spurious output
    ≥85 dB below the carrier typical
    Harmonic output
    ≥75 dB below the carrier typical
    Adjacent Channel Power
    25kHz: ≤ 60 dB
    8.33kHz: ≤ 50 dB

    Physical Characteristics


    Weight
    9 lbs. (less batteries)
    Dimensions
    7.5” L x 9” W x 3.7” H
    (without battery and handles)
    Environmental
    Environmentally tested for humidity, vibration, shock/drop, rain/drip-proof
    Temperature
    -20˚C to +55˚C (operating)
    -50˚C to +70˚C (non operating)

    Power Supply


    Battery
    BB-2590 (rechargeable)
    AC
    90 – 260 VAC, 47 – 63 Hz
    DC
    9 – 40 VDC
    Battery case dimensions
    5.2” L x 10.3” W x 2.8” H
    Current drain (+28 V)
    High power<2.5 amps
    Receive 360 mA
