ProtecD@R Multi-Platform Encryptor (KG-204)

High Speed Classified Data Protection for Unattended Systems

The ProtecD@R® Multi-Platform (KG-204) is the latest in the line of ProtecD@R Data at Rest encryptors that prevents unauthorized access to classified information if the hard drives are lost or stolen. ProtecD@R Multi-Platform incorporates a ruggedized flexible design using standard interfaces that allows it to function in a wide spectrum of environments; from desktop to the harshest tactical locations. At 24 Gb/s throughput, the ProtecD@R Multi-Platform has the horsepower for high speed data storage, but is small enough for desktop or embedded use.

As the use of unmanned vehicles increase the risk of data loss to our adversaries increases. The ProtecD@R Multi-Platform is the first Data at Rest encryptor planned to be certified by NSA for protection of Top-Secret and Below data in Unattended Operations.

The ProtecD@R Multi-Platform is the ideal solution for tactical deployments. Its ruggedized small form factor combined with Gigabyte speeds provides our soldiers with the ideal tool for securing data from adversaries in forward deployed locations and in autonomous vehicle operations. An example of how the ProtecD@R Multi-Platform KG-204 encryptor is being used in real tactical environments is with the Unattended Network Storage (UNS) system from Curtiss-Wright.

Applications
The ProtecD@R Multi-Platform is rugged and Size Weight and Power (SWaP) optimized to support the most stringent tactical environments. With throughput speeds of 24 Gb/s, the KG-204 is the ideal data protection solution for applications with real-time performance requirements like video streaming and data analytics:

  • ISR data collection on manned and unmanned platforms
  • Tactical platform embedment (ground, air, sea)
  • Data Centers

Features

  • Protection of Top Secret and Below Data
  • High Speed Encryption (24 Gb/s)
  • Low latency, Transparent to End Users
  • Supports Unattended Operations
  • Operating System & Host Agnostic
  • Standard SATA Interfaces for Ease of Integration
  • Standalone, Rack mounted or Embedment
  • MIL-STD Ruggedized for Air, Land & Sea
  • Key Discovery for Simplified Key Management
  • Configuration, Management & Recovery via SNMPv3
  • Black Key Fill over DS-101 Interface via Local Mini-USB Port
ProtecD@R is a registered trademark of General Dynamics.

Specifications

ProtecD@R Multi-Platform  View Document
Size

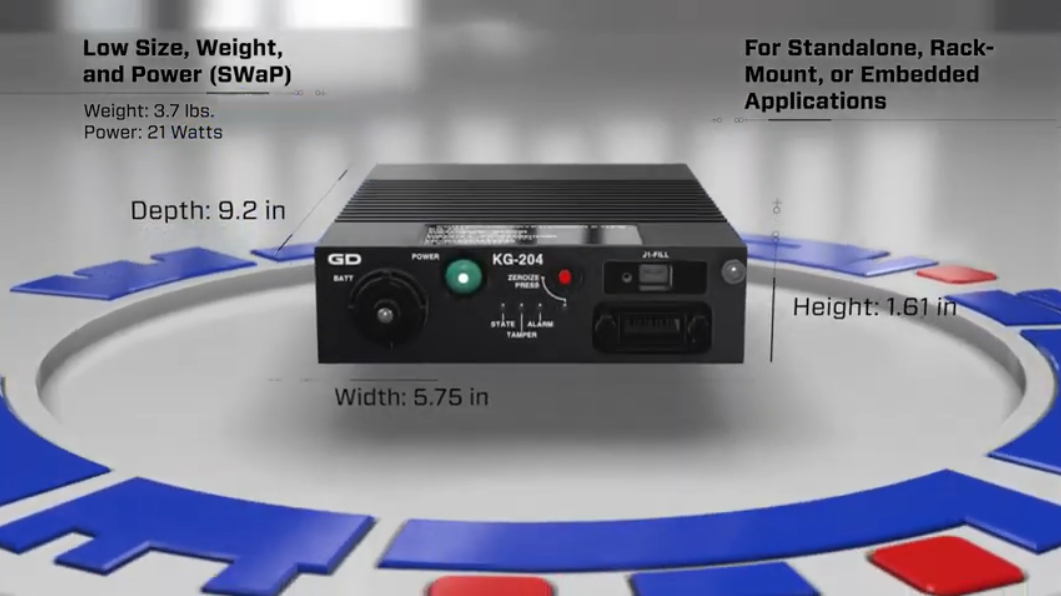

1.615” H x 5.75” W x 9.2” D
19” Rack mountable, 3 Across, 1U
Weight: <5 lbs based upon configuration

Power 29 Watts (4xLanes at Max throughput)
Battery: External user replaceable battery, one “1/2 AA” lithium cell
A full size lithium or alkaline “AA” battery is supported with a battery cap
extender
Standard and MIL-STD 461F compliant power supply

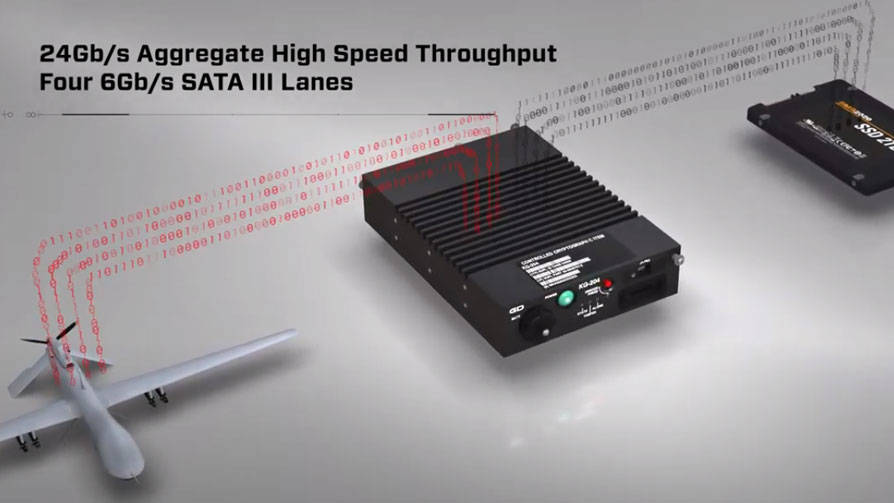

Performance Four 6 Gb/s SATA III lanes for 24 Gb/s
Reliability 68,000 Hrs MTBF at 30C in Airborne Inhabited Cargo (AIC) environments
83,000 Hrs MTBF at 30C in Ground Benign environments
Environment MIL-STD-810G
Operating Temp: -40° to +70°C (-40° to +158°F)
Storage Temp: -55°C to +85°C (-67° to +185°F)
Humidity: 95% RH, Non-condensing
Altitude: Operational sea level to 65,000 ft above sea level
Storage/transit: 1,500 ft below sea level to 70,000 ft above sea level
Shock/Vibration: 20g shock, 11ms
Transportation Vibration, General Vibration, Category 4
Sand: 40 mph winds
Dust: 20 mph winds
EMI / TEMPEST: In accordance with NSTISSAM TEMPEST/1-92 Level 1
Standards Compliance SATA III Compliant
Warranty 2 year hardware and software warranty
Keying Supports NSA Black Key Fill for Encryption Keys
Software upgradeable to support Crypto Modernization
Interfaces Plaintext/Ciphertext Data Interface: Mini Serial Attached Small Computer
System Interface (SCSI) (SAS) Hard Drive (HD)
Console Management Interface: Electrical/Mechanical: IEEE 802.3/Ethernet2;
copper RJ-45 10/100 Base-T
Key Fill: Universal serial bus (USB) Micro AB supporting DS-101 protocol
CIK port: DataKey Electronics SR4310 Serial Memory Receptacle
Remote Connector: DB-25
Remote CIK
Tamper, Alarm, Zeroize, Operational Status
Remote Zeroize
Primary power 5VDC
 Availability The ProtecD@R Multi-Platform (KG-204) Encryptor
is currently in development and is expected to be submitted for
certification 1Q2019.
