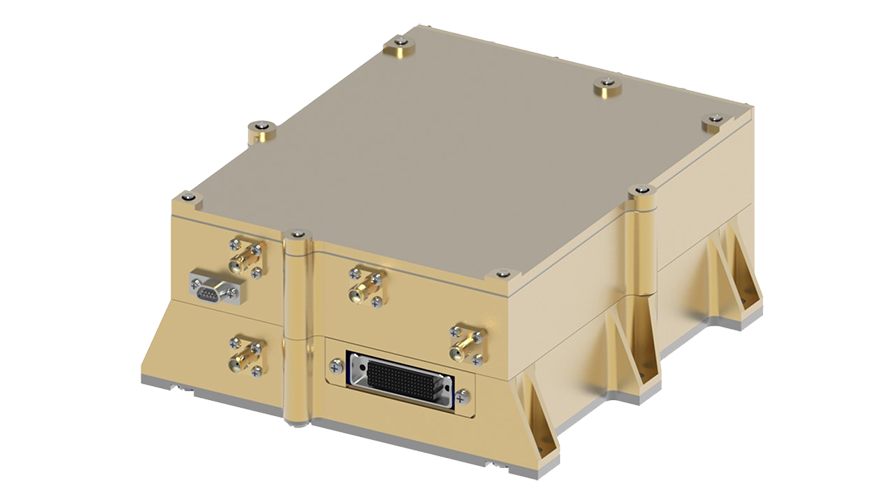

PNT Receiver

Integrated Navigation Subsystem

Designed for DoD/Civil smallsat LEO constellations with low-cost, low-SWAP and 3-5 years mission life.

  • Next Generation of our Legacy Space-Qualified Monarch and Sentinel® GPS Receivers
  • 1,000+ Equivalent Years of Accumulated DoD Space Heritage and more than 6M Orbits

Single Channel GNSS Receiver Subsystem Supporting Civil GPS and Galileo Signals

Optional Second Independent RF Channel for Situational Awareness Monitoring

Includes aPNT Software Fully Integrated into the Receiver

Includes Chip Scale Atomic Clock (CSAC) with Integrated Clock Ensemble

RS422 and Ethernet I/O Interface and Control

Key Features & Benefits
  • Compatible with LEO orbit regimes up to 1200 km
  • Radiation tolerant to 20 krad(Si)
  • Tri-Frequency GNSS covers L1, L2 and L5
  • Fast Acquisition Processor enables rapid cold start capability
  • Fully integrated aPNT software for enhanced performance using TWTT data from optical and communications crosslinks to ground terminals
  • Low-Cost high-stability clock ensemble for extended hold-over time keeping
  • Reduced integration burden into existing SV platforms



Performance Characteristics
  • Supporting GPS and Galileo Civil Codes on L1, L2 and L5
  • GNSS Codes: GPS L1 C/A, L1C, L2C, L5 and Galileo E1, E5
  • Narrow Bandwidth Acceleration-Aided Carrier/Code Tracking
  • Tracking and Navigation Algorithms based on Monarch-M and Sentinel GPS Receivers
  • Sensor fusion of GNSS and aPNT measurements provides superior resiliency and performance
  • Proprietary GNSS aPNT TWTT and orbit propagation algorithms


Specifications

PNT Receiver Datasheet

 View Document


LEO Solution Accuracy

 Autonomous Position  < 1 meter (1σ)
 Autonomous Velocity  < 0.5 cm/sec (1σ)
 Clock and Precise 1PPS Absolute  < 4 ns (1σ)
 Position Error after 40 min outage  < 5 meter (1σ)
 Holdover time estimate  < 3 ns after 100 sec
< 100 ns after 1 hour


Cold Start Time to First Fix

 LEO  < 4 minutes

 aPNT Solution Accuracy (GNSS Denied)

 aPNT Position  < 9 meter (1σ)
 aPNT Velocity  < 2 cm/sec (1σ)
 aPNT Timing  < 5 ns (1σ)


Physical & Environmental

 Design Margin  1.42x Radiation Design Margin TID
 Tolerance  Tolerant to 20 krad(Si)
 Mission Life  3-5 years
 Vibration  16.08 Grms
 Pyro Shock  1500 G
 Temperature  -15 to +45 C
 Size  6.2 in x 7.1 in x 2.9 in
 Weight  < 3 kg
 Power

DC Power (typical at 25 C with 28 V Prime Power)

Single Channel GNSS: < 33 W
GNSS plus optional second independent RF channel: < 38 W



Orbital Dynamics

 Orbital Altitude  LEO (200 km – 1,200 km)
 Orbital Velocity  up to 11,000 meters/second


Other

 Clock Ensemble  Integrated clock ensemble of EMXO and CSAC
Clock steering performed by integrated aPNT software
Supports alternate Ground Control clock steering commands with configurable priority
 Input/Output RS422 and Ethernet Command/Data interfaces
One Pulse per Second (GPS, UTC, or Measurement Epoch Time)
