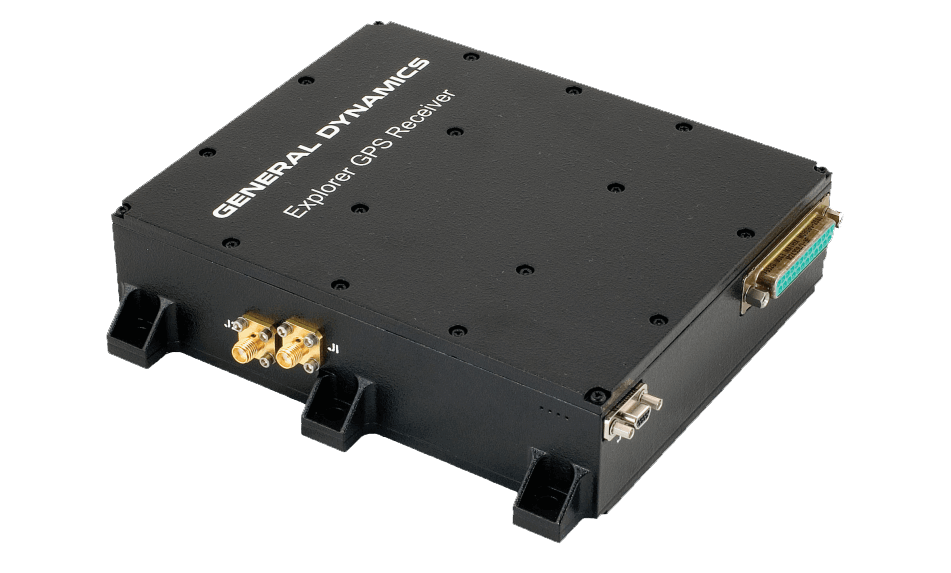

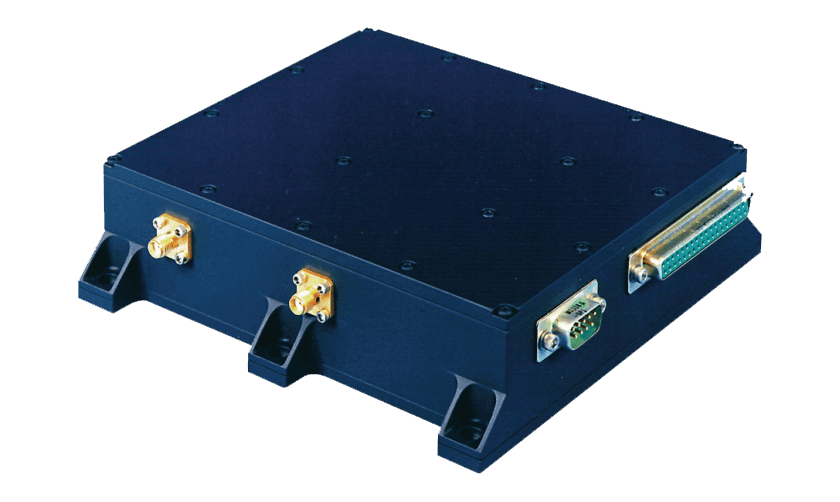

Explorer GPS Receiver

Building On The 100+ Years Of On-Orbit Viceroy™ Performance

General Dynamics’ Explorer Global Positioning System (GPS) Spaceborne Receiver provides position, velocity, and time information for Low Earth Orbit (LEO) and Geostationary Earth Orbit (GEO) applications. Performance and satellite visibility are enhanced through the use of dual antennas; each of the 12 GPS channels can be assigned to either antenna. The design supports RS-422 or MILSTD-1553 bus interfaces.

  • Design based on legacy space qualified digital design
  • 20 years of trouble-free spaceflight heritage
  • Same reliable position, velocity, time, pseudorange and carrier phase at 1Hz
  • Same form-factor and interface control as heritage Viceroy receiver

Features

The Explorer GPS Receiver includes all the features of our heritage Viceroy GPS Receiver. The Explorer supports user selectable parts level to tailor the mission life and cost to meet most mission needs.

  • Space Qualified Digital Design
  • Full Spaceborne Capability
  • Autonomous Operation
  • Pseudorange and Integrated Carrier Phase at One Second Rate
  • One PPS Clock Output Synchronized to GPS Time
  • Radiation Tolerant Design
  • 12 Receive Tracking Channels
  • Only 56 Cubic Inches
  • 20 to 34 VDC Operation
  • Improved Radiation Tolerant Digital Electronics
  • 12 Channels Support All-in-View Tracking
  • Dual Antenna – Any Channel Assigned to Either Antenna
  • Fast Cold Start Mode Simplifies Integration and Autonomous Operation
  • Low Signal Acquisition and Tracking Supports GEO Sidelobe Tracking
  • Enhanced Resolution 1 Pulse per Second Output
  • Tailorable parts level

Specifications



Explorer GPS Receiver Data Sheet





View Document



Receiver Architecture 12 channels with enhanced fast acquisition processor
Dual antenna – any channel to either antenna
L1: 1575.42 MHz, C/A code
Carrier-aided code tracking
Based on legacy Viceroy architecture (hardware and software)
Input/Output RS-422 serial I/O
X.25 protocol with ECEF position, velocity, time, longitude, latitude,
pseudorange, carrier phase
One pulse per second (GPS, UTC, or Measurement Epoch Time)
9-pin male Micro-D for prime power
25-pin female Sub-D for command and telemetry
Solution Accuracy Autonomous Position: < 15 meters, 1 sigma
Autonomous Velocity: < 0.05 meters/second, 1 sigma
1PPS time: < 100 ns, 1 sigma
Time to First Fix LEO: 3 minutes, cold start
GEO: 10 minutes, cold start
Orbital Dynamics Altitude: LEO to GEO (200 km – 45,000 km)
Velocity: up to 16,000 meters/second
Acceleration: 1G+
Optional and Custom Features:
Contact Factory
Serial Port – Mil-Std-1553B
Time Strobe Input: < 100 ns, 1 sigma
Precision internal reference Ovenized Crystal Oscillator (OCXO)
Additional channels up to 24
Enhanced Radiation Hardening
Antenna Active microstrip patch antenna (LEO), 0.4 lbs
High gain multi-element antenna (GEO), 1.0 lb
Power supplied by Explorer
SMA female connection on receiver and antenna
Physical/Environmental Size: 6.3 x 5.2 x 1.7” (160 x 132 x 43 m)
Weight: 2.5 lbs (1.2 kg) max
DC Power: 7 W max steady state tracking (22-36vdc)
Vibration: 17 grms
Shock: 3000 G
Temperature: -20°C to +60°C
Radiation Tolerant Design
Single Event Latch-up Immune



  • Features

    Features

    The Explorer GPS Receiver includes all the features of our heritage Viceroy GPS Receiver. The Explorer supports user selectable parts level to tailor the mission life and cost to meet most mission needs.

    • Space Qualified Digital Design
    • Full Spaceborne Capability
    • Autonomous Operation
    • Pseudorange and Integrated Carrier Phase at One Second Rate
    • One PPS Clock Output Synchronized to GPS Time
    • Radiation Tolerant Design
    • 12 Receive Tracking Channels
    • Only 56 Cubic Inches
    • 20 to 34 VDC Operation
    • Improved Radiation Tolerant Digital Electronics
    • 12 Channels Support All-in-View Tracking
    • Dual Antenna – Any Channel Assigned to Either Antenna
    • Fast Cold Start Mode Simplifies Integration and Autonomous Operation
    • Low Signal Acquisition and Tracking Supports GEO Sidelobe Tracking
    • Enhanced Resolution 1 Pulse per Second Output
    • Tailorable parts level
  • Specifications

    Specifications



    Explorer GPS Receiver Data Sheet





    View Document



    Receiver Architecture 12 channels with enhanced fast acquisition processor
    Dual antenna – any channel to either antenna
    L1: 1575.42 MHz, C/A code
    Carrier-aided code tracking
    Based on legacy Viceroy architecture (hardware and software)
    Input/Output RS-422 serial I/O
    X.25 protocol with ECEF position, velocity, time, longitude, latitude,
    pseudorange, carrier phase
    One pulse per second (GPS, UTC, or Measurement Epoch Time)
    9-pin male Micro-D for prime power
    25-pin female Sub-D for command and telemetry
    Solution Accuracy Autonomous Position: < 15 meters, 1 sigma
    Autonomous Velocity: < 0.05 meters/second, 1 sigma
    1PPS time: < 100 ns, 1 sigma
    Time to First Fix LEO: 3 minutes, cold start
    GEO: 10 minutes, cold start
    Orbital Dynamics Altitude: LEO to GEO (200 km – 45,000 km)
    Velocity: up to 16,000 meters/second
    Acceleration: 1G+
    Optional and Custom Features:
    Contact Factory
    Serial Port – Mil-Std-1553B
    Time Strobe Input: < 100 ns, 1 sigma
    Precision internal reference Ovenized Crystal Oscillator (OCXO)
    Additional channels up to 24
    Enhanced Radiation Hardening
    Antenna Active microstrip patch antenna (LEO), 0.4 lbs
    High gain multi-element antenna (GEO), 1.0 lb
    Power supplied by Explorer
    SMA female connection on receiver and antenna
    Physical/Environmental Size: 6.3 x 5.2 x 1.7” (160 x 132 x 43 m)
    Weight: 2.5 lbs (1.2 kg) max
    DC Power: 7 W max steady state tracking (22-36vdc)
    Vibration: 17 grms
    Shock: 3000 G
    Temperature: -20°C to +60°C
    Radiation Tolerant Design
    Single Event Latch-up Immune
