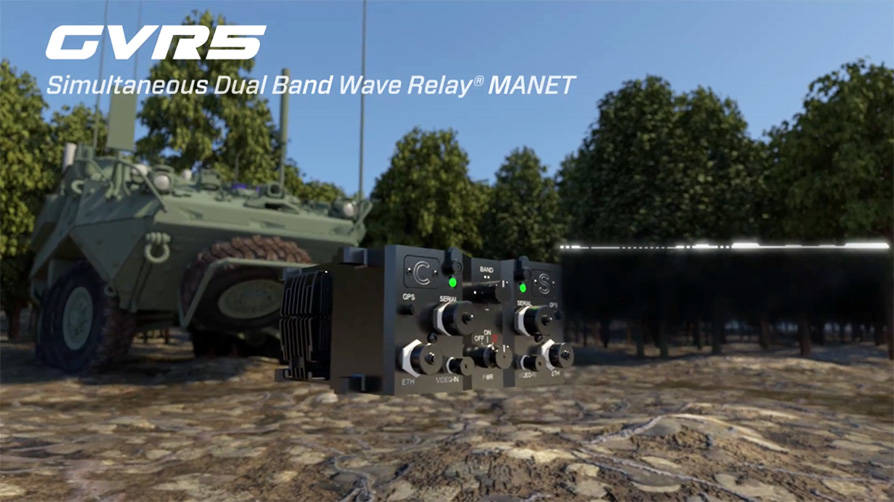

GVR5 Dual-Band Wave Relay MANET

Massively Scalable & Massively Mobile

Designed in collaboration with General Dynamics Missions Systems, the GVR5 by Persistent Systems, LLC, is a dual-band mobile ad hoc networking (MANET) solution. Like other Wave Relay MANET devices from Persistent Systems, the GVR5 allows users to seamlessly share voice, video, text, sensor, and location data, all while on the move without the need for fixed infrastructure. The hardened GVR5 is specifically designed for integration into infantry fighting vehicles and similar platforms that have unique power systems, ballistic and gunfire shock requirements, and operate complex local area networks.


  • Features

    Features

    The GVR5 can simultaneously operate on two frequency bands (L/S, L/C, or S/C - bands). It is an ideal solution for Automated-PACE (Primary, Alternate, Contingency, and Emergency) because it routes communications over the best available band. Additionally, the GVR5 allows dismounted users carrying MPU5 MANET devices to wirelessly connect to a vehicle's intercom system while in or near the vehicle. The GVR5 can be connected to SATCOM or LTE modems in the vehicle to extend BLOS connectivity to dismounted users – delivering global connectivity to the Wave Relay MANET.

    • Simultaneous Dual Band Wave Relay® MANET
      • WR-GVR5-SYS-01: C-Band & L-Band
      • WR-GVR5-SYS-02: C-Band & S-Band
      • WR-GVR5-SYS-03: L-Band & S-Band
    • Optimize communications range, data throughput, and penetration with the GVR5’s 3x3 MIMO antennas with vertical and horizontal polarizations.
    • Make any command and control service available, virtually, from anywhere in the network, using the GVR5’s Internet Protocol differentiated services and efficient voice and video multicast.
    • Manually or remotely enable/disable one or both RF bands for LPI/LPD or EMCON operations
    • The GVR5’s embedded Cloud Relay™, in conjunction with the massively scalable Wave Relay® MANET, makes rarely available means of communicating, such as high capacity SATCOM and LTE, available to anyone in the network.
    • The GVR5’s on-board video encoder, efficient multicast technology, and IP differentiated services will ensure video renders everywhere it’s needed, in time, and without over-loading the network.

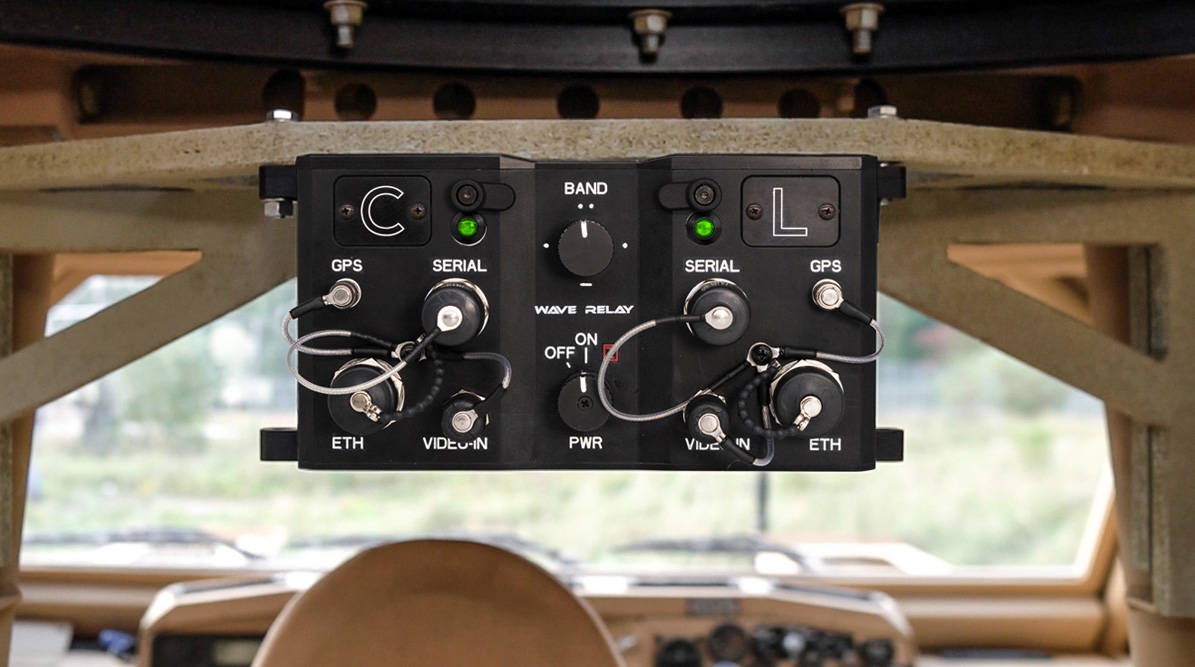

    • The GVR5 is wheeled and tracked vehicle-ready and has optional ballistic shock mounting for the harshest combat environments.



    About Persistent Systems, LLC

    Headquartered in New York City since 2007, Persistent Systems, LLC is a global communications technology company that develops and manufactures a patented and secure Mobile Ad hoc Networking (MANET) system: Wave Relay®. Wave Relay transmits and receives data, video, voice and other applications under the most difficult conditions. Their suite of products is utilized in Commercial, Military, Government, Industrial, Agriculture, Robotics, and Unmanned Systems markets. Please visit https://www.persistentsystems.com to learn more.

  • Specifications

    Specifications

    GVR5 Dual Band Wave Relay MANET

    View Datasheet

    Dual Band Communications Options
    Choose Any Two Frequency Bands
    C: 4430MHz to 5000MHz
    L: 1350MHz to 1390MHz
    S: 2200MHz to 2507MHz
    Selective RF Standby via front panel and
    software APIs.
    3x3 MIMO Antenna Options
    Optimize communications range and
    penetration using the GVR5’s alternative
    combinations of vertically and horizontally
    polarized antennas.
    Each antenna type comes with either wide
    or narrow vertical beam widths to support
    your unique communications preferences.
    Networking
    IPv4/IPv6 with Differentiated Services
    Advanced Wave Relay® MANET multicast
    algorithms
    RTP Multicast & Unicast
    RTSP Unicast
    Layer 2 network connectivity
    Cloud Relay™
    Integrated DHCP server
    Security
    FIPS 140-2 Certification
    Integrated Hardware Cryptographic
    Acceleration
    CTR-AES-256 Encryption
    HMAC-SHA-256 Authentication & Integrity
    NSA Suite-B Algorithms
    Cryptographically authenticated Over-the-
    Air Rekey and Key Zero
    Front Panel Single Switch Zero
    Add a HAIPE to use the radio on a Type 1
    Black Core Network
    Video
    (2) 3G-SDI Input
    H.264 Encoding and Decoding
    Native Scaling
    Bit Rates
    500 Kbps - 20 Mbps
    Frame Rates
    6/10/15/24/29.97/30/59.94/60 fps
    (59.94/60 fps not available at 1080p)
    (2) 1 GHz Quad Core ARM
    Android™ 6.0 Marshmallow
    I/O
    (2) RJ-45 Enet
    (2) 3G-SDI Video
    (2) SMA GPS Antenna
    (2) RS-232
    Environment
    MIL-STD-810
    Temperature
    Storage: -60°F to +160°F
    Operating: -25°F to +125°F plus solar
    radiation 1120W/m2
    Relative Humidity
    95% non-condensing from 86°F to 160°F
    Altitude
    Storage: -1,312ft to 50,000ft;
    Operating: -1312ft to 15,000ft
    Other
    Steam & Water Jet Cleaning, Blowing
    Sand & Dust, Salt Fog, Fungus, Fording,
    Shock Pulse, Drop, Vibration, ESD, HEMP,
    NSL, NBC
    Optional ballistic shock mounts
    EMI
    MIL-STD-461
    CE102
    CS101
    CS114-116
    RE-102
    RS-103
    Power: MIL-STD-1275
    Reverse Polarity Protection
    Input Voltage Range
    20 to 33VDC
    Starting Operation
    Operates through 12VDC for 1sec (initial
    engagement surge), 16VDC for 30sec
    (cranking surge)
    Transient Disturbance
    Operates through 250V for 70μs (spike),
    100V for 50ms (surge)
    Human Factors
    MIL-STD-1472
    Safety
    SEL Form 1183
    Dimensions
    10.05”W x 9.96”D x 4.59”H (excluding
    connectors)
    Max Weight (C/L) Radio
    9.5lbs
