S-Band TDRSS / Deep Space Network (DSN) Transponder
This product has been discontinued

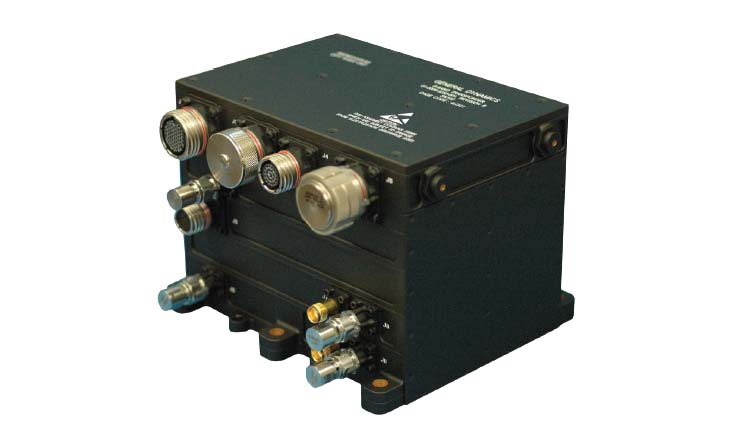

This S-Band Transponder (SBT), developed by General Dynamics, can communicate with both NASA’s Space Network (SN) and Deep Space Network (DSN). Four user selectable frequencies are available including the SN multiple access frequency. Additionally the SBT can function as an inverse SN transponder allowing communication and ranging between two spacecraft or another element on the end of the same link. The SBT’s extensive functionality should satisfy the needs of almost every near-earth mission.
- Space Network Compatible
- Deep Space Network Compatible
- Designed for Manned Missions
- EFT-1 version TRL9 (non DSN Mode)
- Exploratory Missions (EM) versions TRL7 2016, TRL9 2018
Features
- Supports Multiple and Single Access SN Services
- Normal (Point A) and Inverse (Point B) SN Modes
- PN Code Plug: 85 user selectable codes
- Meets SNUG downlink requirements
- Supports DSN ranging and Doppler Services
- Operates Under Launch Environments
- Radiation and SEU Resistant
Specifications
|
S-Band TDRSS/DSN Transponder Data Sheet
|
View Data Sheet For Complete Specifications
|
|---|---|
| Mass | 10.7 lbs (4.9 kg) maximum |
| Input Supply Voltage | 95 to 136 VDC |
| Receiver Only | 13.8 W nominal |
| Receiver + Exciter | 18 W nominal |
| Envelope Size | 7.575”L x 8.92”W x 6.00”H |
| Radiation Total Dose | 40 krads (Si) minimum, most parts 100 krads (Si) |
| Qual Temperature Range | -35 to +76° C maximum |
| Operating Vibration | 25.8 grms |
| Survival Vibration | 37.8 grms |
